Turbo HD Cameras

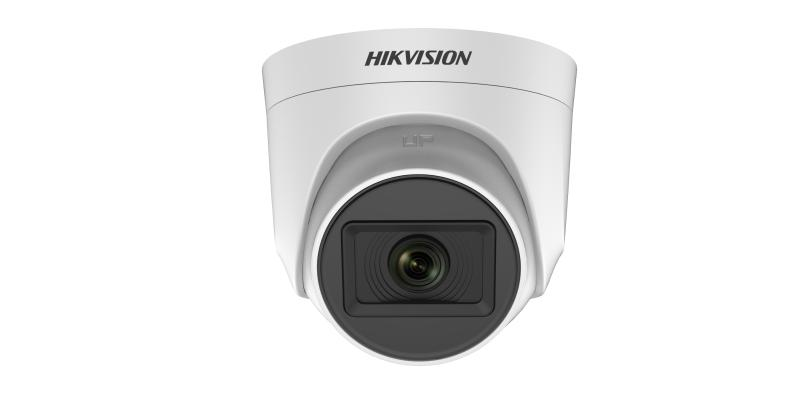

HIKVISION DS-2CE76D0T-EXIPF C _O-STD_2MP

2 MP turret camera EXIR 2.0: advanced infrared technology with 20 m IR distance 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Rs: 4,300.00
Quantity
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time

    PAL: 1/25s to 1/50, 000 s

    NTSC: 1/15 s to 1/50, 000 s

  • Day & NightICR
  • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
  • Focal Length & FOV

    2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°

    3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

    6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°

  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Smart IR
  • Frame Rate

    TVI: 1080P@30fps, 1080P@25fps

    CVI: 1080P@30fps, 1080P@25fps

    AHD: 1080P@30fps, 1080P@25fps

    CVBS: PAL/NTSC

  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC
  • White BalanceATW/MANUAL
  • AGCSupport
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialPlastic
  • DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
  • Approx. 135 g (0.30 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25%
  • Consumption

    Max. 2.2 W



  • IR RangeUp to 20 m
